Stainless Steel Wire

General Details

As a professional manufacturer, we can provide different size of Wire with good quality and reasonable price.

Specifications:

1) Grade: 201, 202, 301, 303, 304, 304L, 305, 316, 316L, 321, 410, 416, 420, 430…

                 1.4301, 1.4306, 1.4845, 1.4401, 1.4371, 1.4597, 1.4541, etc.

2) Standard: ASTM, EN, DIN, JIS

3) Diameter: 0.05-20mm

4) Surface: bright, plain, black, dull and EPQ quality

5) Type: spring, welded, tig, mig etc

               soft and hard

6) Tensile strength: soft (650-850N/mm2) and hard (around 2000N/mm2)

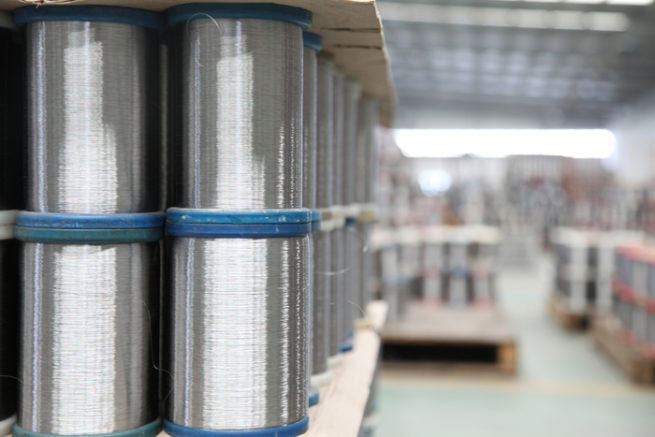

7) Packing: in Coil or in Spool then in Carton or as customers’ request

8) Quality assurance: Mill Test Certificate is supplied with shipment, third Party Inspection is acceptable

Product Application:

With bright surface, slight magnetism and no cracks on forming, is widely used in bicycle fittings, kitchen and sanitation tools, goods shelf, pet cages, gill racks, decorative handles and baskets, food and medical machinery accesses, etc.

Type AISI C Max % Mn Max % P Max

%

S Max

%

Si Max

%

Cr

%

Ni

%

Mo

%

201 0.15 5.50-7.50 0.06 0.03

1

16.000-18.00 0.5
202 0.15 7.50-10.00 0.06 0.03

1

17.00-19.00 3.-0-5.00
204Cu 0.08 6.5-8.5 0.06 0.03

2

16.0-17.0 1.5-3.0
302 0.15 2 0.045 0.03

1

17.00-19.00 8.00-10.00
302HQ 0.03 2 0.045 0.02

1

17.00-19.00 9.00-10.00
304Cu
304HC 0.04 0.80-1.70 0.04 0.015

0.3-0.6

18-19 8.5-9.5
303 0.07 2 0.045 0.25 Min

1

17-19 8.0-10.0 0.6
304 0.08 2 0.045 0.03

1

18.00-20.00 8.0-10.50
304L 0.03 2 0.045 0.03

1

18.00-20.00 8.00-12.00
310S 0.055 1.5 0.04 0.005

0.7

25.0-28.0 19-22
314 0.25 2 0.045 0.03

1.50-3.00

23.00-26.00 19.00-22.00
316 0.06 2 0.045 0.03

1

16.00-18.00 10.00-14.00 2.00-3.00
316L 0.03 2 0.045 0.03

1

16.00-18.00 10.00-14.00 2.00-3.00
316Ti 0.08 2 0.045 0.03

0.75

16.00-18.00 10.00-14.00 2.00-3.00
347 0.08 2 0.045 0.03

1

17.00-19.00 9.00-13.00
321 0.06 2 0.045 0.01

.40-.60

17-19.00 9.4-9.6
ER308 0.08 2 0.045 0.03

1

17-19 9.5-13.0
ER308L 0.025 1.50/2.00 0.025 0.02

0.5

19.0/21.0 9.5/11.0
ER309 0.08 1.50/2.50 0.02 0.015

0.5

23.0/25.0 20.0/14.0
ER309L 0.025 1.50/2.50 0.02 0.015

0.5

23.0/25.0 12.0/14.0
ER316L 0.02 1.50/2.00 0.02 0.02

0.5

18.0/20.0 12.00-14.00 2.00-3.00
430L 0.03 1 0.04 0.03

1

16.00-18.00
434 0.08 1 0.04 0.03

1

16.00-18.00 0.90-1.40

All can be produced according to customers’ actual requirement.
