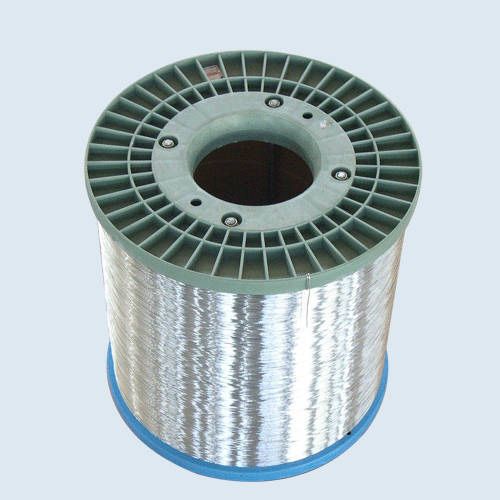

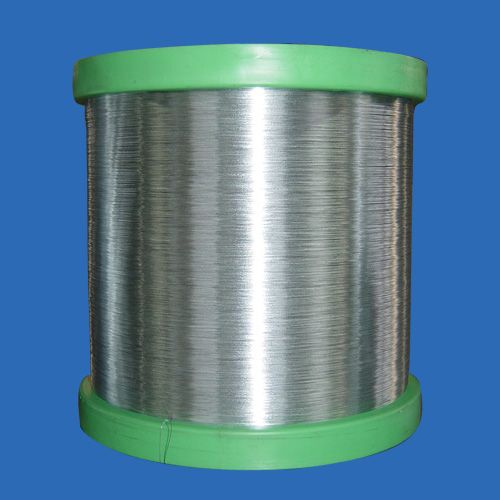

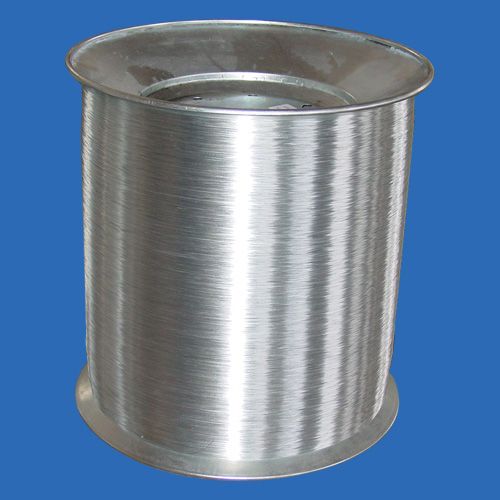

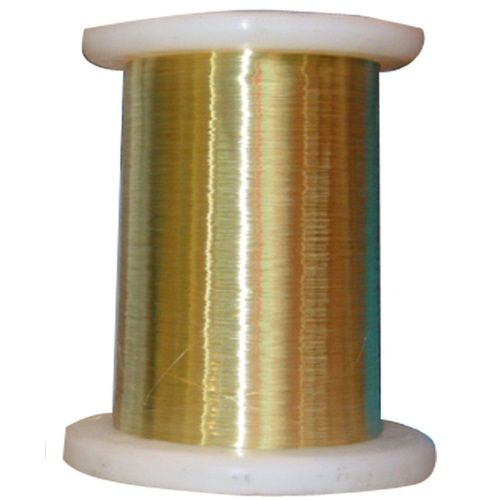

  • Fine Wire for Braiding and Weaving

    Fine Wire for Braiding and Weaving

    Fine Wire for Braiding and Weaving

    Fine Wire for Braiding and Weaving

    Fine Wire for Braiding and Weaving

  • Detailed description
  • Fine Wire for Braiding and Weaving

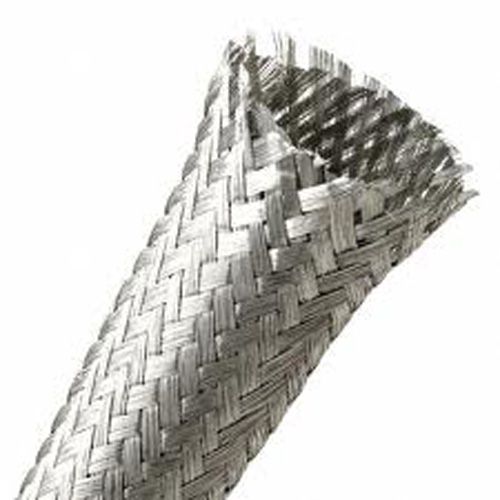

    1)Application: for cable braiding, hose braiding, wire mesh woven etc.

    2) Material:    Carbon steel wire, mild steel wire.

    3)Diameter:    0.15mm~2.00mm

    4) Technical Info:

    Nominal wire diameter

    mm

    T/S

    N/mm2

    Zn coating

    g/m2

    El.

    %

    Packing

    0.15,0.24,0.28,0.30,0.40,…2.00mm

    320-500

    Elec:min12 or 15

    Hot:Min.25

    15-30

    DIN160

    DIN200

    DIN250

    DIN355

    MP100

    HY100(90kg/steel spool)

    In coils



    5) Packing:   2kg~500kg, on spool or in coils

    6) Advantages: Thick zinc coating, good corrosion resistance, firm zinc coating, etc.

    7) All can be produced according to customers’ actual requirement.
