  • Cable Armouring Wire

    Cable Armouring Wire

    Cable Armouring Wire

    Cable Armouring Wire

  • Detailed description
  • Cable Armoring Wire (CAW Wire, Wire for cable armouring, Armouring Cable Wire)


    1) Application: Hot dipped galvanized steel wire for cable armouring

    2) Diameter:    0.90, 1.25, 1.60, 2.00, 2.50, 3.15, 4.00mm

    3) Technical Info:

                                Surface: hot-dipped zinc coated

                                Tensile strength:340-500 N/mm2 for all sizes
                                Elongation: Min. 10% for all sizes

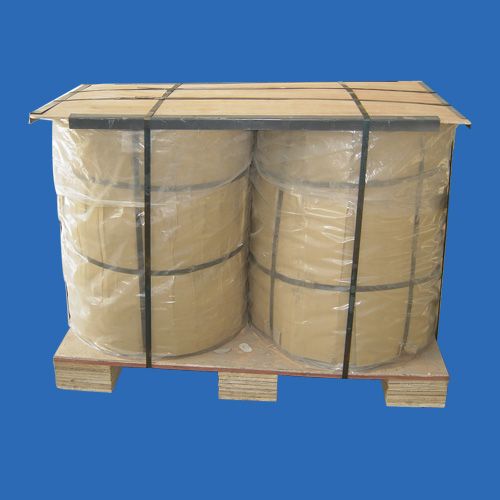

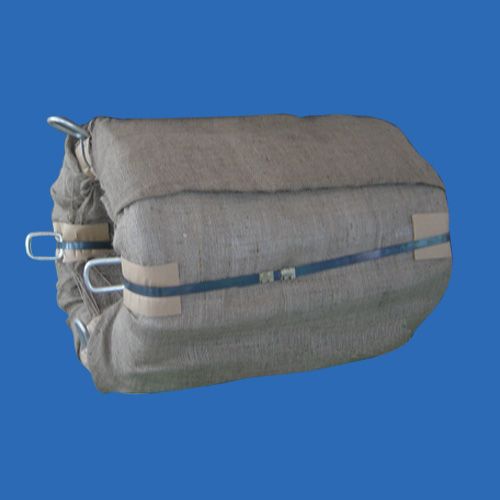

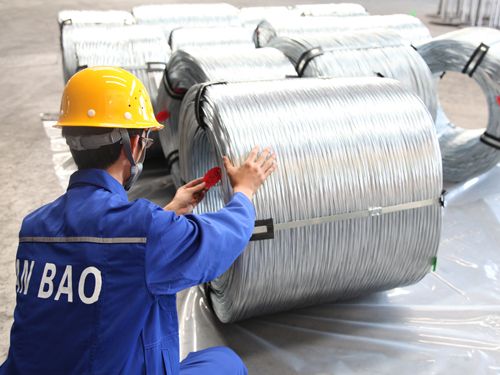

    4) Packing: jumbo coil, Inner 4 metal strips and 4 D-ring with plastic bag and PE woven cloth outside.

    5)Standard: BS EN10275-1: 1998, BS443.

    6) All can be produced according to customers’ actual requirement.

    Material:

    Sizes:

    Tolerance (mm):

    Tensile strength:

    N/mm2

    Elongation (Min):

    Zinc coating g/m2:

    Elec. Resistance (Max.ohm/km) :

    Coil ID

     (mm):

    Coil Wt

    .(kgs):

    Galvanized steel wire for cable armoring

    0.87mm

    +/-0.025

    340-500

    Min.12%

    Min.150

    Max.233

    350-500

    400-500

    1.21mm

    +/-0.035

    340-500

    12%

    180

    120

    350-500

    400-500

    1.54mm

    +/-0.045

    340-500

    12%

    195

    74.13

    350-500

    500-600

    1.94mm

    +/-0.05

    340-500

    12%

    215

    46.71

    350-500

    500-600

    2.43mm

    +/-0.065

    340-500

    12%

    230

    29.77

    350-500

    500-600

    3.05mm

    +/-0.07

    340-500

    12%

    255

    18.9

    350-500

    500-600

    3.80mm

    +/-0.075

    340-500

    12%

    275

    12.18

    350-500

    500-600
