  • Stitching Wire

    Stitching Wire

    Stitching Wire

    Stitching Wire

    Stitching Wire

  • Detailed description
  • Stitching Wire


    1) Introduction: These wires are extensively used for stitching cardboard packaging boxes/cartons/books. The wire produced goes through strict testing norms thus offering better Rust resistance properties than others.

    2) Material:    low carbon and middle carbon.

    3) Diameter:    0.40-1.00mm

    4) Technical Info: as per customer request

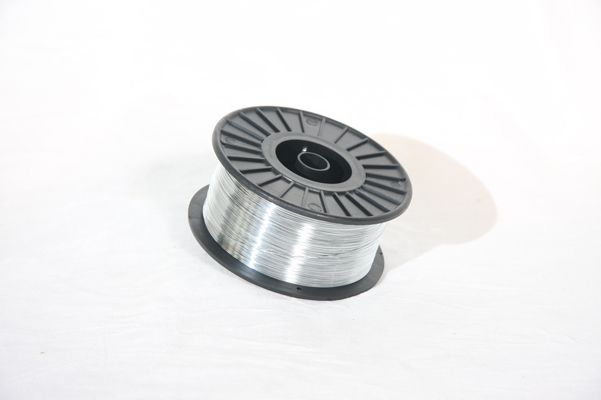

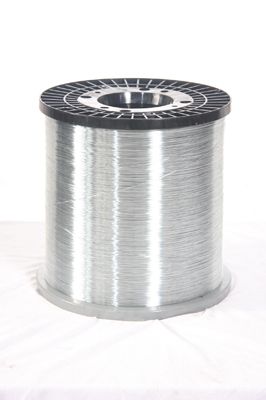

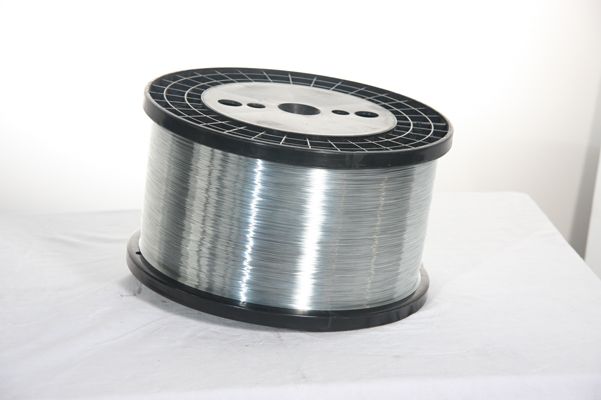

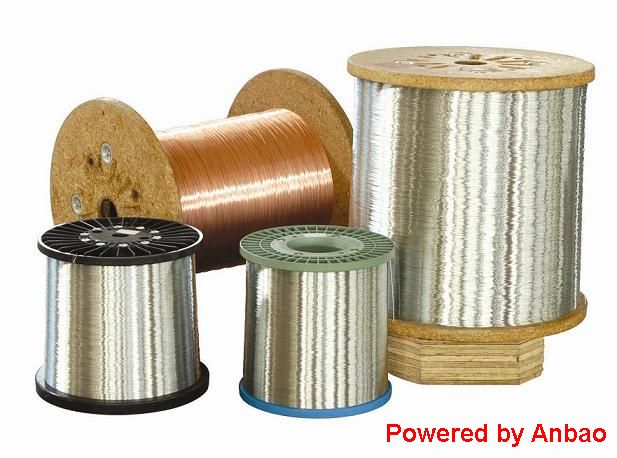

    5) Packing:  We can supply stitching wire on 2 kilo plastic reels, 3-1/2 kilo reels, 10 kilo reels, 15 kilo reels, spools of 100 kilos etc.

    Round Wire:

    Wire
    Gauge
    German Wire Gauge
    (mm)
    m/kg
    ASWG
    (mm)
    m/kg ft/LBS BWG
    (mm)
    m/kg ft/LBS
    21 0.8 253
    0.81
    247
    368  0.81  247  368
    22 0.75 288
    0.73
    304
    452
     0.71  322  479
    23 0.7 331
    0.65
    384
    571
     0.63  409  609
    24 0.6 451
    0.58
    482
    717
     0.56  517  769
    25 0.55 536
    0.52
    600
    893
     0.51  624  929
    26 0.5 649
    0.46
    767
    1141
     0.46  767  1141
    27 0.45 801
    0.44
    838
    1247
     0.41  965  1436
    28 0.4 1014
    0.41
    965 1436  0.36  1252  1863
    29 0.37 1185
    0.38
    1123
    1671
     0.33  1489  2216
    30 0.35 1324
    0.36
    1252
    1863
     0.3  1802 2682


    Flat Wire:

    Wire
    Diameter
    Size
    in Inches
    Sizes
    in Millimeters
    Feet per
    pound
    *Recommended
    Thickness of Work
    18 x 20 .047 X .035 1.21 X 0.88 221 5/8" - 2"
    19 x 21.5 .041 X .030 1.04 X 0.76 283 1/2" - 1"
    20 x 24 .035 X .023 0.88 X 0.58 408 Up to 3/16"
    20 x 25 .0.35 X .021 0.88 X 0.52 455 1/8" - 5/8"
    21 x 25 .032 X .035 0.81 X 0.52 559 1/16" -1/2"

    *The recommended thickness of work also depends on the type and grade of paper used.

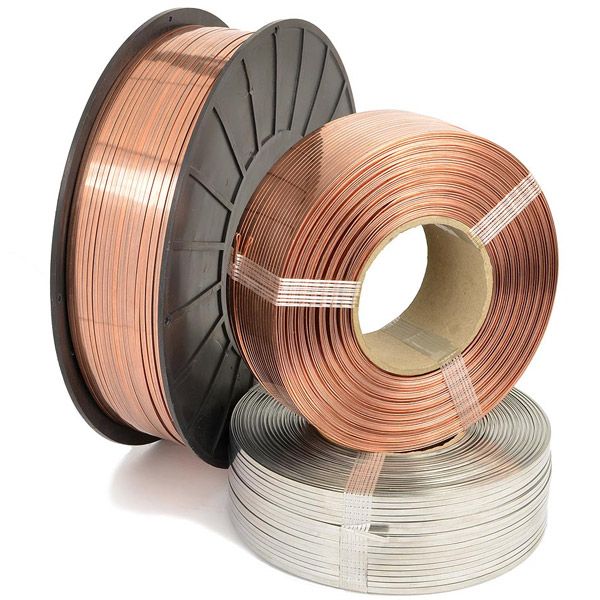

    6) Surface and shape: Stitching wire can be supplied in round or flat wire, in galvanized iron wire or copper coated iron wire, Stainless Steel Stitching Wire, Tinned Coated Stitching Wire.

    7) All can be produced according to customers’ actual requirement.
