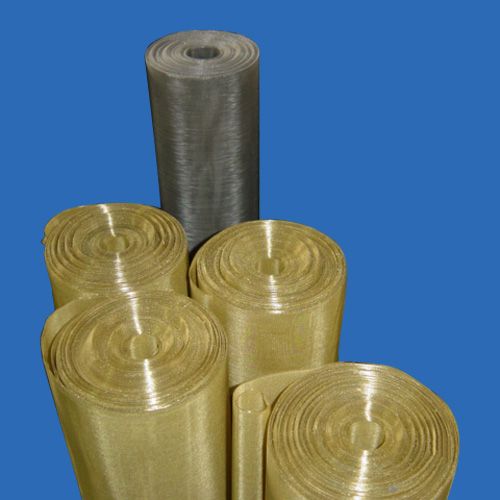

  • Plain Weave Wire Mesh

    Plain Weave Wire Mesh

  • Detailed description
  • Plain Weave Wire Mesh

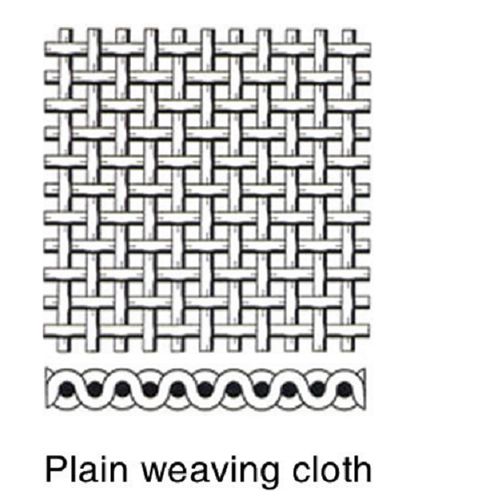

    Each weft wire passes over one and under one warp wire, and each warp wire passes over one and under one weft wire, every weft wire have and warp wire the same diameter.

    Characteristics: square aperture ,high flow through , relative high open area, as result less pressure drop during filtration suitable for all kinds of filtration up to 63 µm.

    Mesh/Inch

    Wire Diameter

    Aperture

    Open Area

    Weight(LB) /100 Square Foot

    Inch

    MM

    Inch

    MM

    1x1

    .080

    2.03

    .920

    23.37

    84.6

    41.1

    2X2

    .063

    1.60

    .437

    11.10

    76.4

    51.2

    3X3

    .054

    1.37

    .279

    7.09

    70.1

    56.7

    4X4

    .063

    1.60

    .187

    4.75

    56.0

    104.8

    4X4

    .047

    1.19

    .203

    5.16

    65.9

    57.6

    5X5

    .041

    1.04

    .159

    4.04

    63.2

    54.9

    6X6

    .035

    .89

    .132

    3.35

    62.7

    48.1

    8X8

    .028

    .71

    .097

    2.46

    60.2

    41.1

    10X10

    .025

    .64

    .075

    1.91

    56.3

    41.2

    10X10

    .020

    .51

    .080

    2.03

    64.0

    26.1

    12X12

    .023

    .584

    .060

    1.52

    51.8

    42.2

    12X12

    .020

    .508

    .063

    1.60

    57.2

    31.6

    14X14

    .023

    .584

    .048

    1.22

    45.2

    49.8

    14X14

    .020

    .508

    .051

    1.30

    51.0

    37.2

    16X16

    .018

    .457

    .0445

    1.13

    50.7

    34.5

    18X18

    .017

    .432

    .0386

    .98

    48.3

    34.8

    20X20

    .020

    .508

    .0300

    .76

    36.0

    55.2

    20X20

    .016

    .406

    .0340

    .86

    46.2

    34.4

    24X24

    .014

    .356

    .0277

    .70

    44.2

    31.8

    30X30

    .013

    .330

    .0203

    .52

    37.1

    34.8

    30X30

    .012

    .305

    .0213

    .54

    40.8

    29.4

    30X30

    .009

    .229

    .0243

    .62

    53.1

    16.1

    35X35

    .011

    .279

    .0176

    .45

    37.9

    29.0

    40X40

    .010

    .254

    .0150

    .38

    36.0

    27.6

    50X50

    .009

    .229

    .0110

    .28

    30.3

    28.4

    50X50

    .008

    .203

    .0120

    .31

    36.0

    22.1

    60X60

    .0075

    .191

    .0092

    .23

    30.5

    23.7

    60X60

    .007

    .178

    .0097

    .25

    33.9

    20.4

    70X70

    .0065

    .165

    .0078

    .20

    29.8

    20.8

    80X80

    .0065

    .165

    .0060

    .15

    23.0

    23.2

    80X80

    .0055

    .140

    .0070

    .18

    31.4

    16.9

    90X90

    .005

    .127

    .0061

    .16

    30.1

    15.8

    100X100

    .0045

    .114

    .0055

    .14

    30.3

    14.2

    100X100

    .004

    .102

    .0060

    .15

    36.0

    11.0

    100X100

    .0035

    .089

    .0065

    .17

    42.3

    8.3

    110X110

    .0040

    .1016

    .0051

    .1295

    30.7

    12.4

    120X120

    .0037

    .0940

    .0064

    .1168

    30.7

    11.6

    150X150

    .0026

    .0660

    .0041

    .1041

    37.4

    7.1

    160X160

    .0025

    .0635

    .0038

    .0965

    36.4

    5.94

    180X180

    .0023

    .0584

    .0033

    .0838

    34.7

    6.7

    200X200

    .0021

    .0533

    .0029

    .0737

    33.6

    6.2

    250X250

    .0016

    .0406

    .0024

    .0610

    36.0

    4.4

    270X270

    .0016

    .0406

    .0021

    .0533

    32.2

    4.7

    300X300

    .0051

    .0381

    .0018

    .0457

    29.7

    3.04

    325X325

    .0014

    .0356

    .0017

    .0432

    30.0

    4.40

    400X400

    .0010

    .0254

    .0015

    .370

    36.0

    3.3

    500X500

    .0010

    .0254

    .0010

    .0254

    25.0

    3.8

    635X635

    .0008

    .0203

    .0008

    .0203

    25.0

    2.63
