  • ACSR Core Wire

    ACSR Core Wire

    ACSR Core Wire

    ACSR Core Wire

    ACSR Core Wire

  • Detailed description
  • ACSR Core Wire

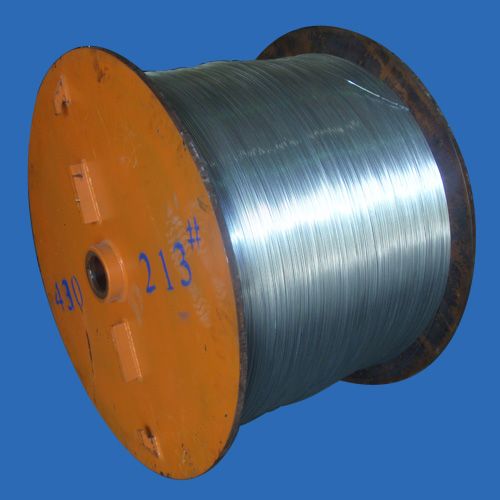

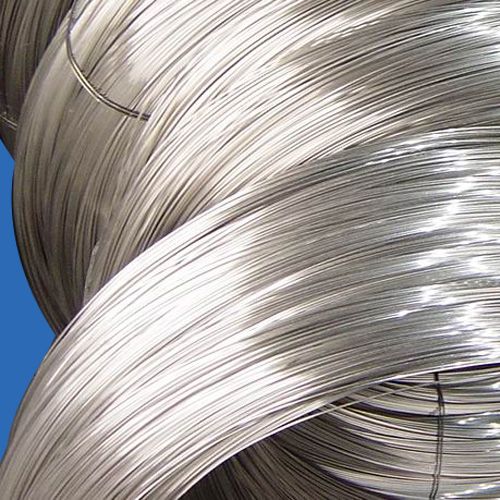

    1) Profile: High Tensile Galvanized Steel Wire or ACSR Core Wire may be supplied as single wire or also in seven strands. Manufactured conforming to various international standards to specify requirement of customers.

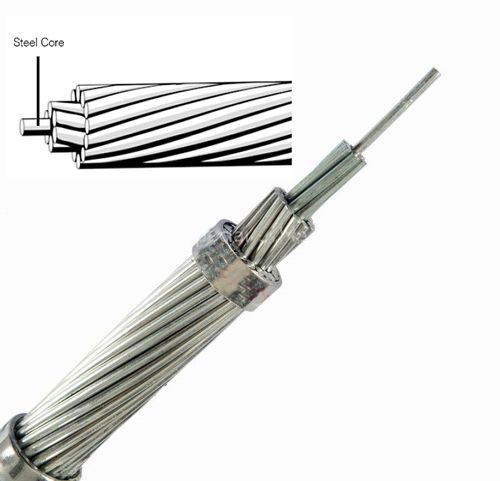

    2) Application: Used for mechanical re-inforcement in the manufacture of aluminum conductor steel reinforced (ACSR) Cable & Conductor ACSR Core wire is used in reinforcement of aluminium conductors used in distribution and transmission of electricity.

    3) Material high carbon steel

    4) Diameter:  1.25-4.77mm

    5) Technical Info:  as below table

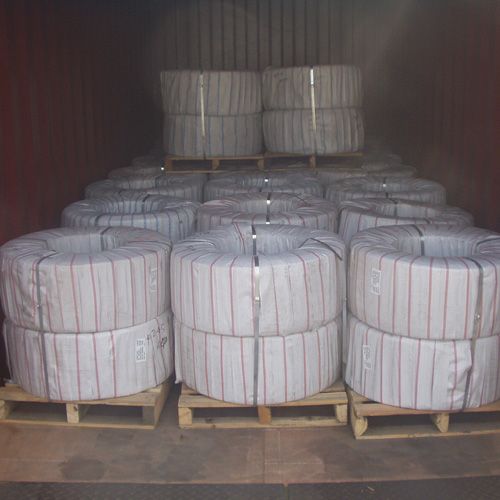

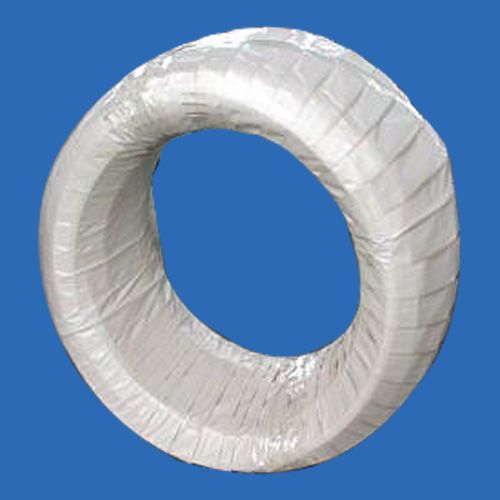

    6) Packing:  in coils, on spool

    7) Standard:  ASTM B498, IEC60888, IS 398 - Part II etc



    IS

    BS

    ASTM

    IEC

    ACSR

    398 Part II

    398 Part V

    EN 50189

    B-498

    888 Regular

    Year

    1996

    1996

    2000

    1993

    1987

    IS 398 - Part II

    Diameter

    Tolerance

    Cross

    Approx.

    Breaking load KN*

    Zn-Coating

    sectional

    wt.

    area



    Before

    Minimum

    Number of CuSO4 5H2

    dipping test





    stranding

    wt. of coating

    mm

    mm

    mm2

    kg/km



    g/m2

    min

    1.5

    +/-0.03

    1.767

    13.78

    2.46

    190

    2

    1.57

    +/-0.03

    1.936

    15.1

    2.7

    190

    2

    1.96

    +/-0.04

    3.017

    23.53

    4.2

    210

    2

    2.11

    +/-0.04

    3.497

    27.27

    4.6

    210

    2

    2.3

    +/-0.05

    4.155

    32.41

    5.46

    230

    2-½

    2.59

    +/-0.05

    5.269

    41.09

    6.92

    230

    2-½

    3

    +/-0.06

    7.069

    55.13

    9.29

    240

    3

    3.18

    +/-0.06

    7.942

    61.95

    10.43

    250

    3

    3.35

    +/-0.07

    8.814

    68.75

    11.58

    250

    3

    3.53

    +/-0.07

    9.787

    76.34

    12.86

    250

    3

    4.09

    +/-0.08

    13.14

    102.48

    17.27

    275

    3-½

    * 1 KN = 101.0 kg.



    IS 398 - Part V

    Mechanical Properties

    Nominal Diameter

    Size Tolerance

    Cross Sectional Area

    Mass

    Breaking Load Min

    Zinc Coating

    No. of 1 Min Cudips

    mm

    mm +/-

    mm2

    Kg/km

    KN

    Kg/mm2

    g/m2

    1 min

    3.53

    0.07

    9.787

    76.34

    12.86

    1312

    250

    3

    2.3

    0.05

    4.155

    32.41

    5.63

    574

    230

    2-½

    2.54

    0.05

    5.067

    39.52

    6.87

    700

    230

    2-½

    ASTM B498 - 93 Class A Coating                     ASTM Standard

    Nominal Diameter

    (mm)

    Size Tolerance (mm)

    Ultimate Tensile Strength Min.

    Stress at 1 % Extension Min.

    % Elongation Min.

    Zn coating Min.

    Wrapping Mandrel Dia.

    From

    To - Incl.

    +

    -

    MPa

    Kg/mm2

    MPa

    Kg/mm2

    GL = 250 mm

    g/m2

    mm

    1.27

    1.521

    0.038

    0.025

    1450

    148

    1310

    133

    3

    183

    3d

    1.524

    1.902

    0.038

    0.025

    1450

    148

    1310

    133

    3

    198

    3d

    1.905

    2.283

    0.038

    0.025

    1450

    148

    1310

    133

    3

    214

    3d

    2.286

    2.639

    0.051

    0.051

    1410

    144

    1280

    130

    3.5

    229

    4d

    2.642

    3.045

    0.051

    0.051

    1410

    144

    1280

    130

    3.5

    244

    4d

    3.048

    3.553

    0.076

    0.051

    1410

    144

    1240

    126

    4

    259

    4d

    3.556

    4.569

    0.102

    0.076

    1380

    141

    1170

    119

    4

    274

    5d

    4.572

    4.822

    0.102

    0.076

    1380

    141

    1170

    119

    4

    305

    5d

    Zn COATING - BS 443 : 1982

    Nominal Diameter

    mm

    Zn coatng min

    Number Of Dips min

    From

    - Incl.To

    g/m2

    1 minute

    1.24

    1.32

    170

    2

    1.32

    1.55

    180

    2

    1.55

    1.8

    200

    2

    1.8

    2.24

    215

    2

    2.24

    2.72

    230

    2-½

    2.72

    3.15

    240

    3

    3.15

    3.55

    250

    3

    3.55

    4.25

    260

    3

    4.25

    5

    275

    3-½

    5

    5.5

    290

    3-½

    International Electrotechnical Commission - IEC 888- 1987 - CLASS 1 COATING

    Regular Grade

    Nominal Diameter

    mm

    Size Tole-rance mm

    Ultimate Tensile Strength min

    Stress at 1 % Extension min

    % Elongation min

    TORSION

    Zn Coat- ing min

    Wrapp- ing Mandrel Dia

    From

    To - Incl.

    +/-

    N/mm2

    Kg/mm2

    N/mm2

    Kg/mm2

    GL=250mm

    GL=100xd

    g/m2

    (X x OD)

    1.24

    1.5

    0.03

    1340

    137

    1170

    119

    3

    18

    185

    1

    1.5

    1.75

    0.03

    1340

    137

    1170

    119

    3

    18

    200

    1

    1.75

    2.25

    0.03

    1340

    137

    1170

    119

    3

    18

    215

    1

    2.25

    2.75

    0.04

    1310

    134

    1140

    116

    3

    16

    230

    1

    2.75

    3

    0.05

    1310

    134

    1140

    116

    3.5

    16

    230

    1

    3

    3.5

    0.05

    1290

    132

    1100

    112

    3.5

    14

    245

    1

    3.5

    4.25

    0.06

    1290

    132

    1100

    112

    4

    12

    260

    1

    4.25

    4.75

    0.06

    1290

    132

    1100

    112

    4

    12

    275

    1

    4.75

    5.5

    0.07

    1290

    132

    1100

    112

    4

    12

    290

    1

    8) All can be produced according to customers’ actual requirement.
