    Galvanized Steel Strips And Tapes

    Galvanized Steel Strips And Tapes

    Galvanized Steel Strips And Tapes

    Galvanized Steel Strips And Tapes

    Galvanized Steel Strips And Tapes

    Galvanized Steel Strips And Tapes

  • Detailed description
  • Galvanized Steel Strips And Tapes

    Finish: The surface of Galvanized steel strips is free form scales, seams, Zinc flakes and other surface

    imperfection. The zinc coating shall be smooth and continuous.


    Thickness: 0.15 mm to 2.00 mm


    Width
    : 4 mm to 1250 mm


    General Technical Specifications:
    Tensile Strength
    : 28 to 50 kgf/mm2
    Elongation
    : Minimum 10% on 250 mm gauge length.

    Zinc Coating: Minimum 110 g/m2 (total weight on all four sides). However, this can be increased

    to suit customer's requirements.


    Galvanized Steel Sheets:




    PLAIN

    SKIN PASSED

    CORRUGATED

    GALVANNEAL

    Thickness

    (mm)

    0.10 to 2.00

    0.30 to 2.00

    0.12 to 1.20

    0.30 to 2.00

    Width

    (mm)

    Up to 1250

    Up to 1250

    660,762,800,900,1050

    Upto 1250

    Cut-To-Length

    (mm)

    Up to 4500

    Up to 4500

    Up to 4100 ( 16")

    Upto 4500

    Surface Finish

    Regular And minimum Spangles

    Mate with Zero/minimum Spangles

    Regular Spangles

    Matte

    Coating Mass

    (Gms/m2)

    80 to 300

    80 to 300

    80 to 300

    80 to 300

    Grades

    Soft/Lock Forming

    EDD, DD & D ( SPCEN, SPCD, SPCC)

    Roofing

    EDD,DD&D


    Packing Options

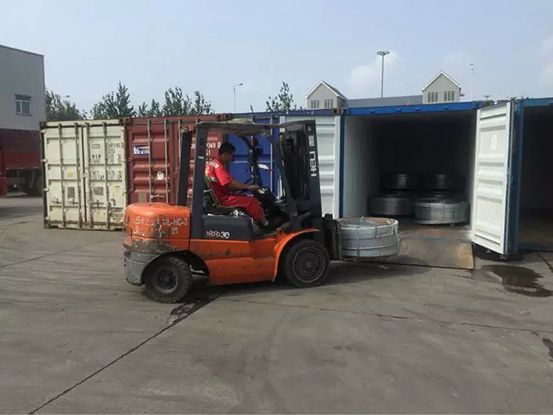

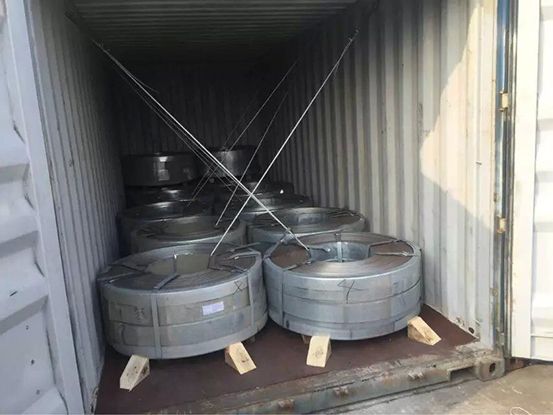

    Galvanized steel coils are wrapped in strong water proof sea-worthy packing and are in palletized loads.

    Other types of packing can be done as required.


    Normal Delivery Schedules

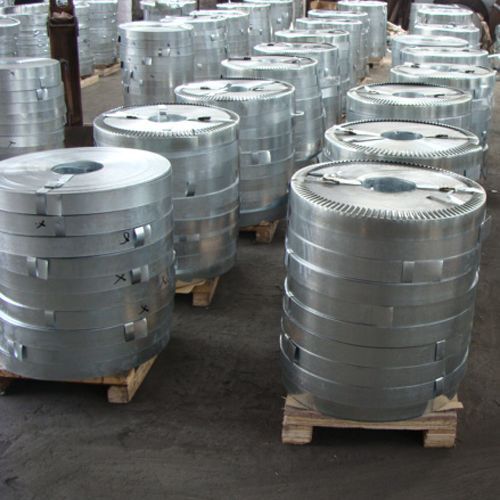

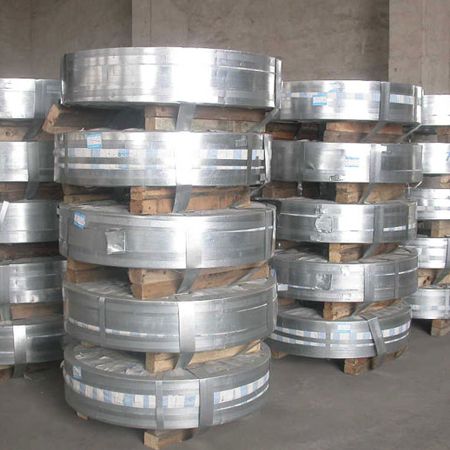

    Delivery Form: Galvanized Steel Strips are supplied in continuous lengths in ribbon wound coils.


    Coil Size: Inside Diameter- minimum 150 mm, Outside Diameter - Within 400-800.


    Product Testing
    Galvanized Steel Strips are manufactured according to customer's requirements and specifications.

    Our products conform to the following standards:


    • ASTM A90 BS 2989
    • ASTM A93 IS 3975
    • ASTM A459
    Galvanized Steel Strips
