  • Product images
  • sintered wire mesh

    sintered wire mesh

    sintered wire mesh

    sintered wire mesh

    sintered wire mesh

    sintered wire mesh

  • Detailed description
  • Sintered Wire Mesh



    Material: SUS304(AISI304), SUS316(AISI316), SUS316L(AISI316L)

    Special Alloy Steel Hastelloy, Monel, Inconel are acceptable base on customer's requirement.

    Size: 500×1000mm, 600×1200mm, 1000×1000mm, 1200×1200mm, and other sizes in these ranges are also available.

    Type:

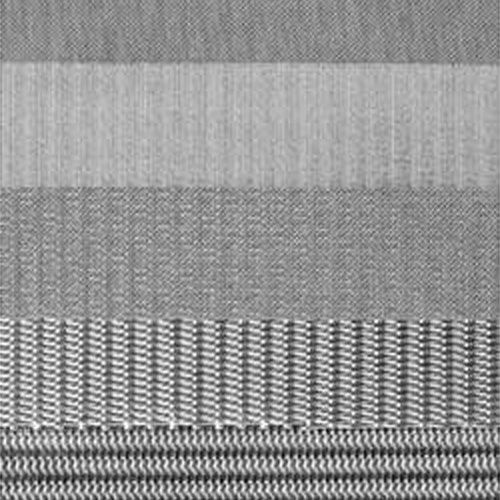

    1)standard combination of 5-layer sintered wire mesh

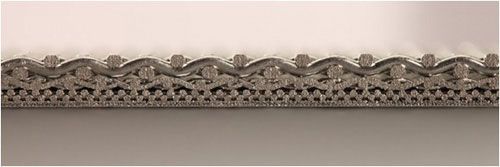

    2)sintered together by many layers of plain-woven square mesh

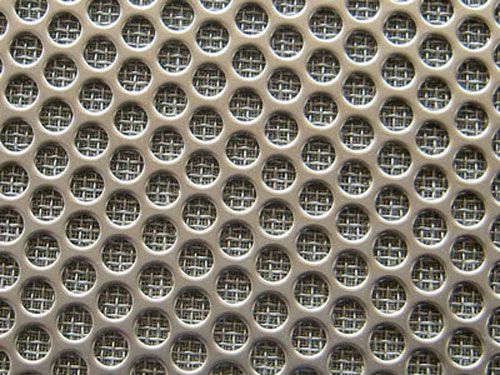

    3)sintered by punching plate and multi-layer stainless steel wire mesh.

    4)overlapped and stacked up by 2 or 3 layers of plain and dutch woven wire mesh with equal hole size after vacuum sintering, pressurizing and rolling.

    Characterictics: unparalleled performance, stable filter rating, high mechanical strength, easy to clean, heat resistance, corrosion resistance, tractability, etc.

    Application: purification and filtration of liquid and gas, separation and recovery of solid particle, transpiration cooling under extremity high temperature, control air flow distribution, enhancement of heat and mass transfer, noise reduction, current limitation, and wildly used in aerospace, petrochemical industry, pharmaceutical industry, environmental protection industry etc.

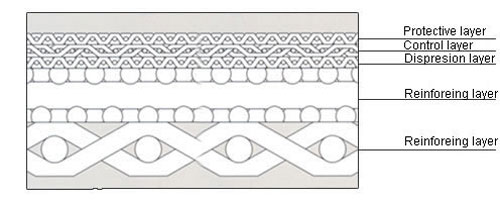

    Structural Drawing:

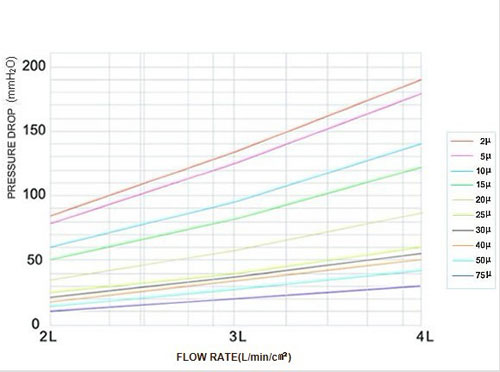

    Curve of Air Flow rate:


    Specification:

    Nominal Filter Rating(micron

    Protective Layer

    Control Layer

    Dispersion Layer

    Reinforce Layer

    Reinforce Layer

    Thickness (mm)

    Air

    Permeability at 1000pa
    (L/min·c
    )

    Bubble Pressure(mmH2O)

    Weight
    (kg/
    )

    Porosity (%)

    1

    200

    400×3000

    200

    12×64

    64×12

    1.7

    1.81

    360600

    5layers
    (8.4)



    6layers
    (14.4)

    About 40%

    2

    100

    325×2300

    100

    12×64

    64×12

    1.7

    2.35

    300590

    5

    100

    200×1400

    100

    12×64

    64×12

    1.7

    2.42

    260550

    10

    100

    165×1400

    100

    12×64

    64×12

    1.7

    3.00

    220500

    15

    100

    165×1200

    100

    12×64

    64×12

    1.7

    3.41

    200480

    20

    100

    165×800

    100

    12×64

    64×12

    1.7

    4.50

    170450

    25

    100

    165×600

    100

    12×64

    64×12

    1.7

    6.12

    150410

    30

    100

    400

    100

    12×64

    64×12

    1.7

    6.86

    120390

    40

    100

    325

    100

    12×64

    64×12

    1.7

    7.10

    100350

    50

    100

    250

    100

    12×64

    64×12

    1.7

    8.41

    90300

    75

    100

    200

    100

    12×64

    64×12

    1.7

    8.70

    80250

    100

    100

    150

    100

    12×64

    64×12

    1.7

    9.10

    70190

    150

    50+100+50+30+30+100+50

    2.0

    25.00

    50150

    200

    40+80+40+20+40+80+40

    2.0

    26.00

    Note: Add one layer of 12mesh weaving wire mesh on basis of 5-layer sintered wire mesh to become 6-layer sintered wire mesh, thickness will be 3.5mm, and it will get good pressure durability.
