Brass Plated Steel wire for Hose Reinforcement

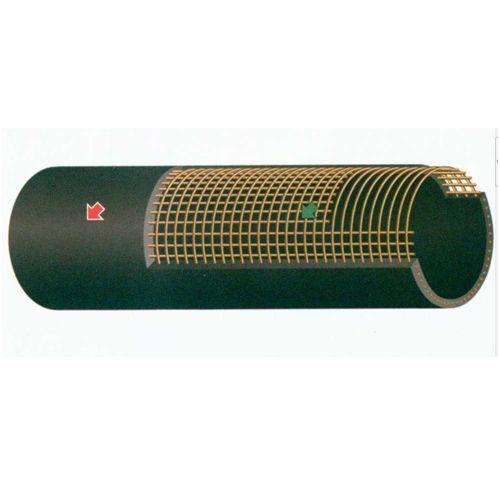

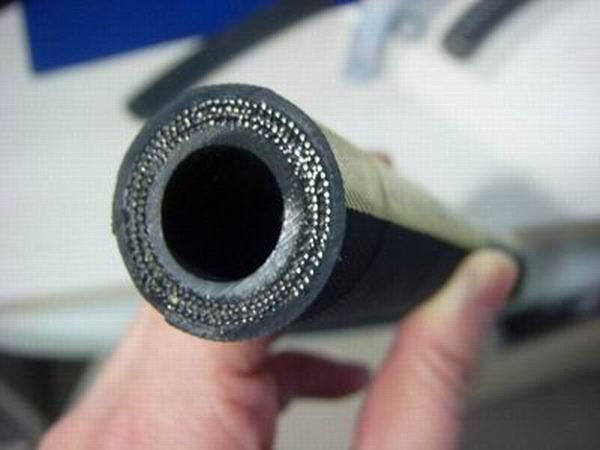

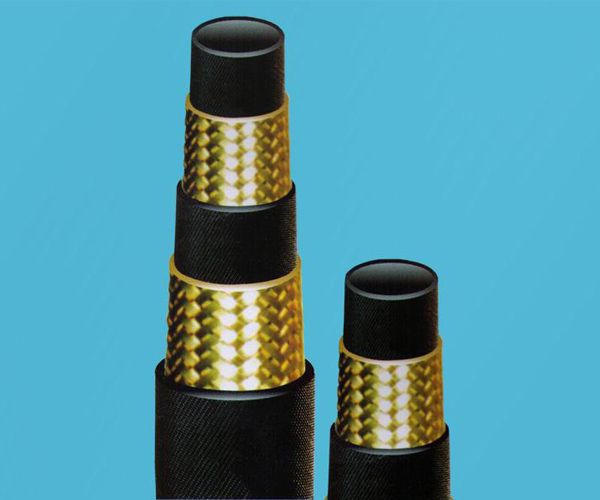

Brass Plated Steel Wire for Hose Reinforcement, also called Rubber Hose Steel Wire, Brass Plated Steel Wire, Brass Coated Steel Wire, Copper Coated Steel Wire, Copper Plated Steel Wire, Hose Wire. is used as braided or spiral wrapped reinforcement for rubber and thermoplastic high pressure hoses. These high-pressure rubber hoses can stand high pressure and high impulsive force, and can be used into machinery, aviation, ocean industry, petrol drilling industry, etc.

The surface of this steel wire is plated with a uniform layer of copper-zinc alloy.

The copper-zinc ratio of the plating layer is 68+4%:32+4%.
Technical parameter：

Diameter (mm)	Tolerance (mm)	Tensile Strength (N/mm2)	Min.Torsion (No.100d)	Min. Bending (N0)	Knotted Rate (≥%)	Elongation (≥%)	Brass Mass (g/kg)	Cu Content (%)
0.20	±0.010	2150-2450 2450-2750 2750-3050 3050-3350	41 41 41 35	125 125 125 125	58 58 50 50	1.6	3.5--5.5	64--71.5
0.22		2150-2450 2450-2750 2750-3050 3050-3350	41 41 38 32	125 125 125 125	58 58 50 50
0.25		2150-2450 2450-2750 2750-3050 3050-3350	41 41 40 30	125 125 105 75	58 58 50 50
0.28		2150-2450 2450-2750 2750-3050 3050-3350	40 40 35 30	115 105 85 65	58 58 50 50
0.295		2150-2450 2450-2750 2750-3050 3050-3350	40 39 33 28	105 100 85 65	58 58 50 50
0.30		2150-2450 2450-2750 2750-3050 3050-3350	40 39 31 25	105 100 85 65	58 58 50 50
0.32	±0.015	2150-2450 2450-2750 2750-3050 3050-3350	39 38 30 25	90 85 75 65	58 58 50 50
0.33		2150-2450 2450-2750 2750-3050 3050-3350	37 35 30 25	80 75 65 55	58 58 50 50
0.35		2450-2750 2750-3050 3050-3350	35 30 25	60 55 50	58 50 50
0.38		2150-2450 2450-2750 2750-3050 3050-3350	35 35 30 20	65 65 55 50	58 58 50 50
0.40		2150-2450 2450-2750 2750-3050 3050-3350	35 35 30 20	55 55 50 45	58 58 50 50
0.45		2150-2450 2450-2750 2750-3050	30 30 25	45 45 40	58 58 50	1.8	3.0--5.0
0.50		2150-2450 2450-2750 2750-3050	30 30 25	40 35 30	50 50 50	1.9
0.56		2150-2450 2450-2750 2750-3050	28 28 24	35 30 25	50 50 50	1.9
0.60		2150-2450 2450-2750	30 28	30 28	50 50	2.0
0.65		2150-2450 2450-2750 2750-3050	27 27 25	27 27 25	50 50 50	2.2
0.70		2150-2450 2450-2750 2750-3050	25 25 24	25 25 24	50 50 50	2.2

Note：The elongation for 0.40mm and smaller diameters can be negotiated according to customer’s requirement.
